Suzuki DRZ400S-SM pannier mounting rack
Sale

Suzuki DRZ400S-SM pannier mounting rack

$207.00

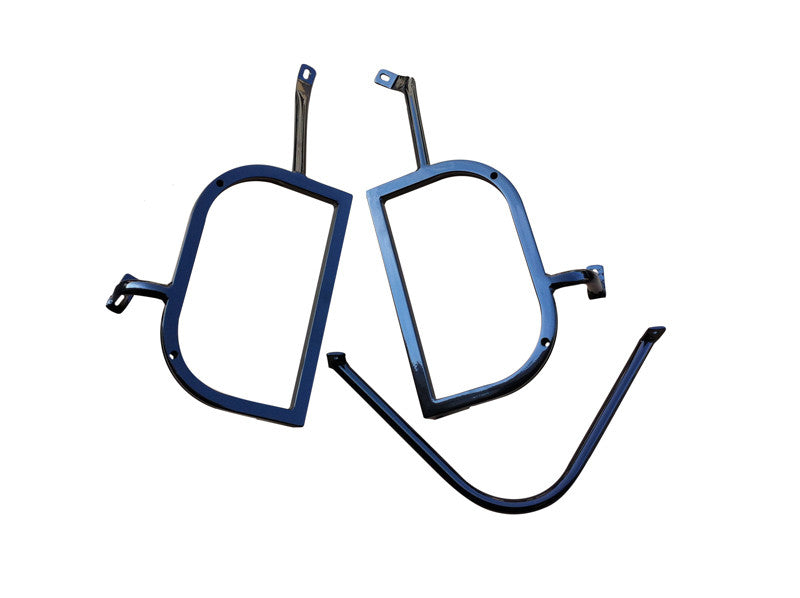

Pannier mounting rack for Suzuki DRZ400 S and SM models only,fits all years.

Mount your own aluminum pannier,pelican case or small ammo can with this rack.
Comes with the mounting brackets to mount your own case,and all the bolts you need to install.
Made by DirtRacks
Powder coated finish
3/4 inch steel tubing frame
Easy installation,bolts right on
Comes with mounting  brackets to mount your own case
Can be used with soft saddlebags too
Lifetime warranty

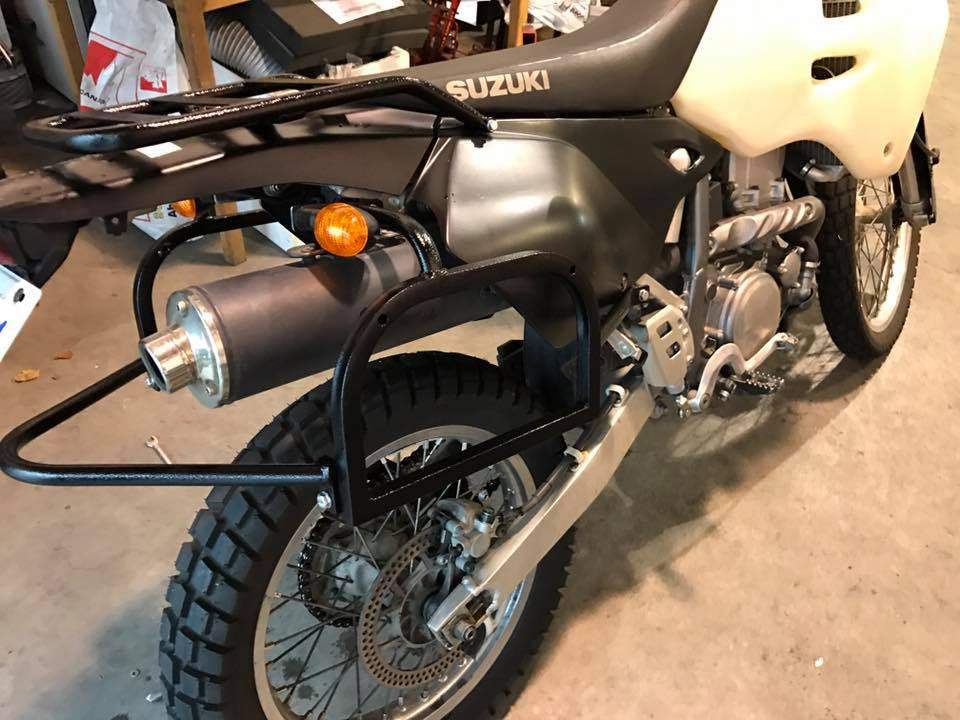

Installation
Remove the 2 upper bolts from the passenger footpeg bracket
Hold the right side up to the bike and install the m8x25mm bolt with washers and nut
Install the m8x40mm bolt at the footpeg bracket use the 20 mm spacer between the rack and bracket,do not tighten any bolts yet
Install the left side the same way except use a m8x25mm bolt at the footpeg bracket without a spacer
Install the back connecting piece with the 2 m8x25mm bolts with washers and nuts
Tighten all bolts
