Luggage racks and crashbars for dual sport motorcycles.All prices are in CAD$

Kawasaki KLR650 Pannier Mounting Rack  1987-2018
Sale

Kawasaki KLR650 Pannier Mounting Rack 1987-2018

$179.00

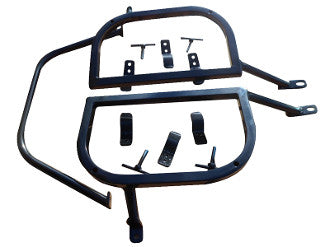

Pannier mounting rack for Kawasaki KLR650 dual sport motorcycles. Mount your own ammo can, Pelican case, aluminum panniers or any luggage with this rack. Made of 3/4 inch steel tube construction, powder coated finish.  Brackets included to mount your own case.

 Easy bolt-on installation. We supply all the bolts needed to secure these pannier racks also bolts to install your own ammo can, Pelican case or aluminum panniers!

Features

Powder coated finish hammertone

Made from 3/4 inch steel tubing

Easy bolt on installation

Turn signal does not need to be relocated

Fits both the old klr 1987-2007 and new klr 2008-2018

Comes with the mounting brackets and bolts to mount your own case



How to install the cases on the racks

install the racks on the bike and hold up the cases to the rack.mark the location with a sharpie

remove the racks from the bike

place the racks on the back of the  cases,make sure they are symmetrical

place the mounting brackets in place 2 at the bottom and 1 up in the middle

drill the holes for the brackets,bolt on the brackets

drill 2 more holes thru the 2 welded nuts,make sure that you do not damage the threads

remove the rack from the case and drill these 2 holes again with a bigger drill,about 3/8

make sure the welded T bolts fit thru

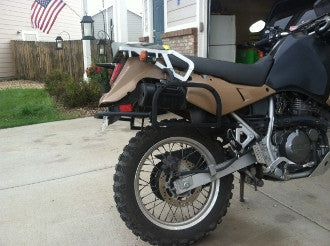

install the rack on the bike and hang the cases on the rack

install the T bolts from the inside of the case,hand tighten only to secure the case to the rack
