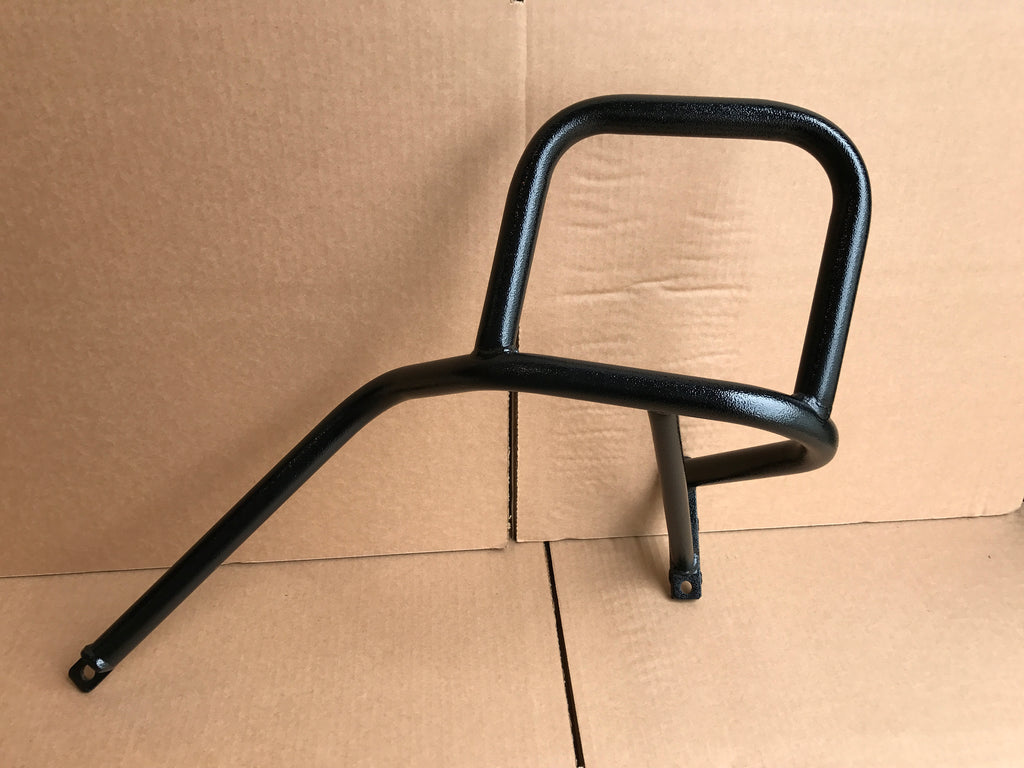

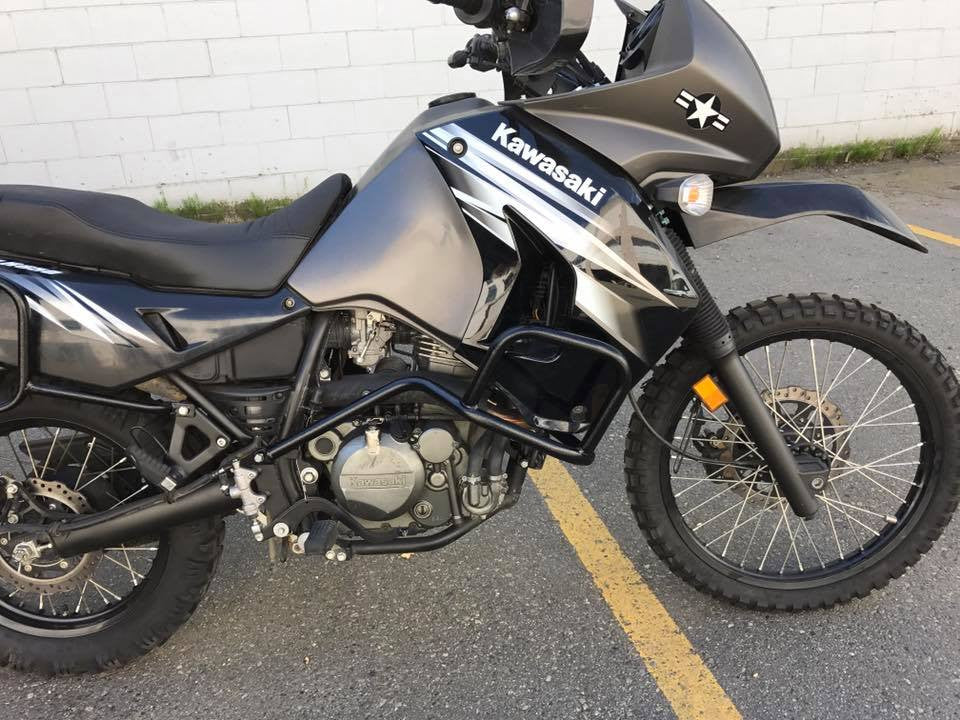

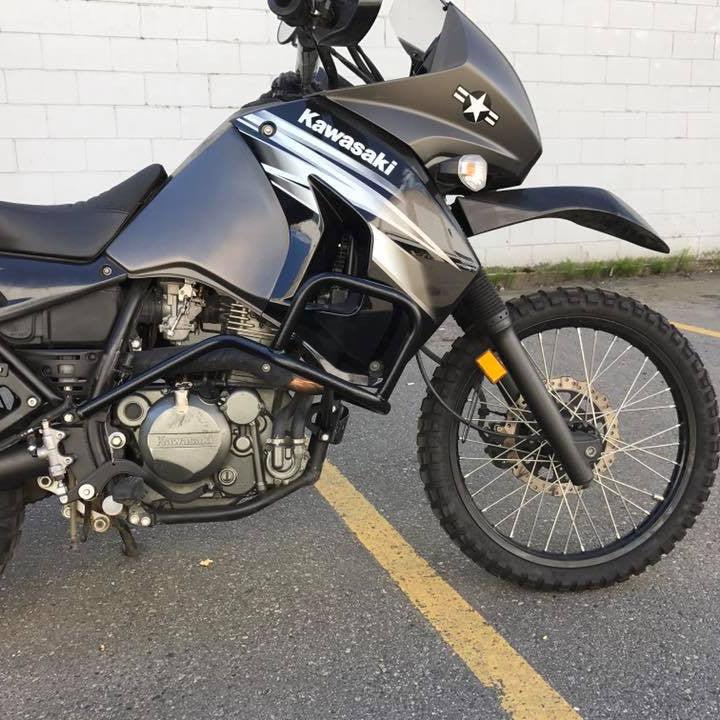

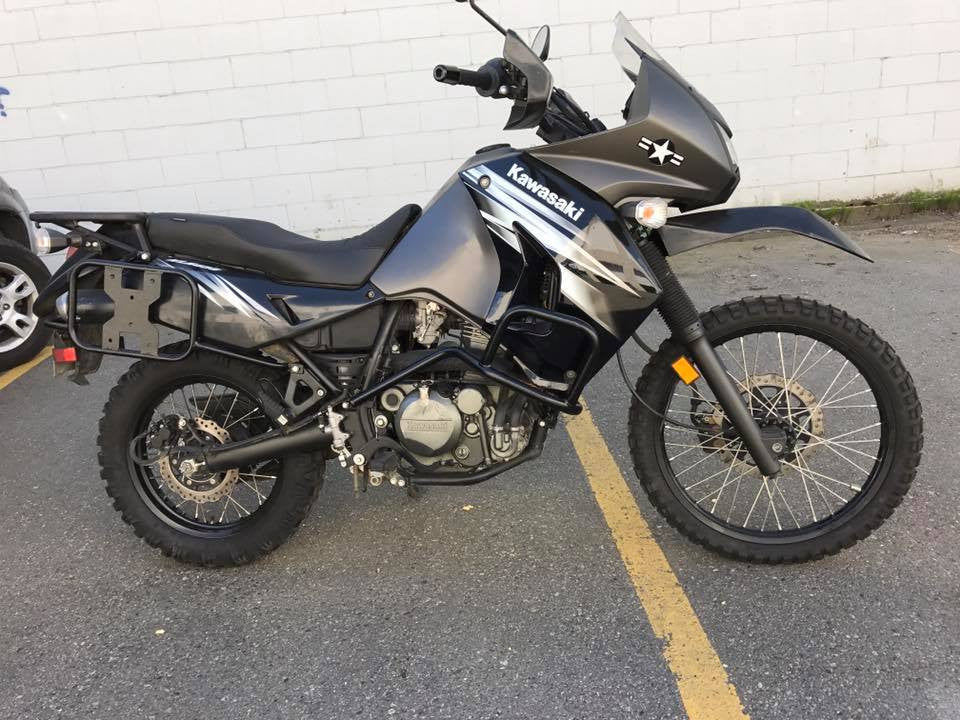

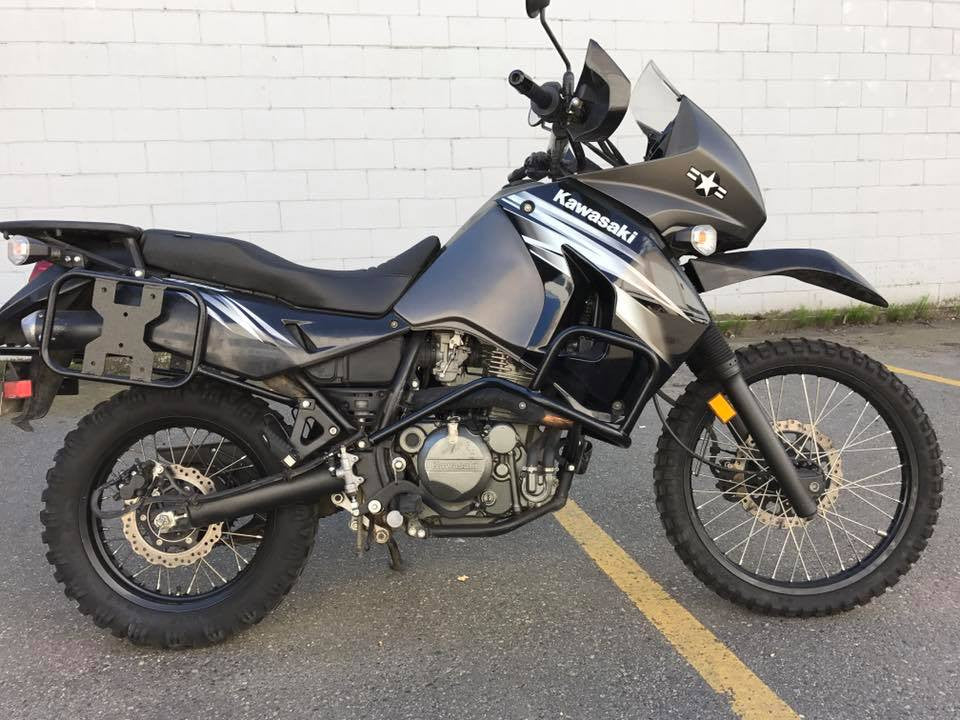

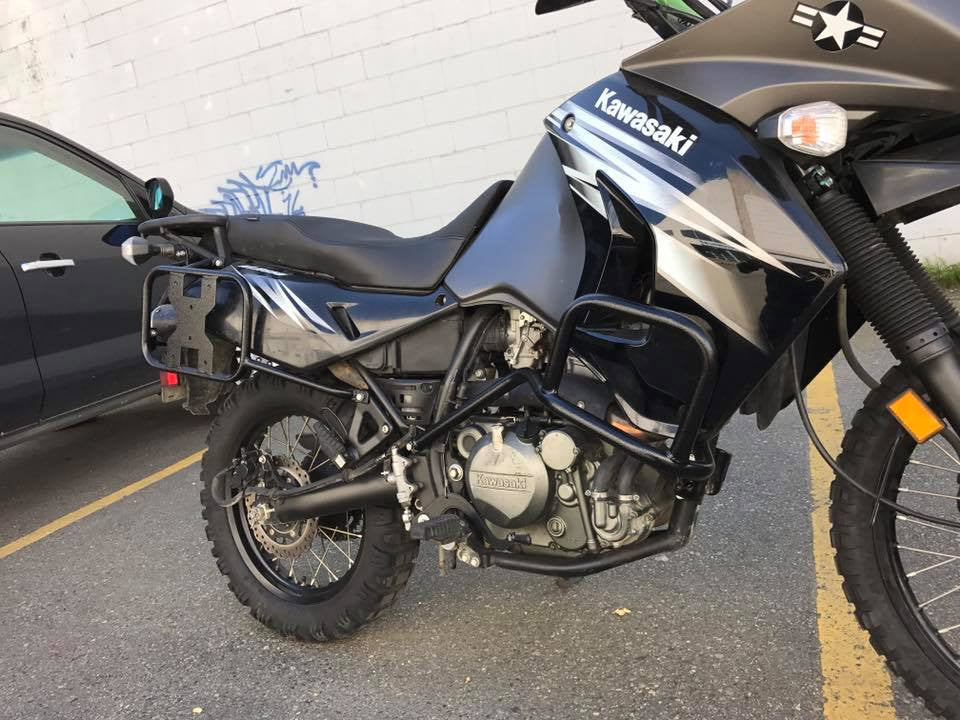

Heavy duty front engine crash bar for 2008-2018 KLR650
Heavy duty standard crash bars
Hand-crafted in Canada, made from 1 inch steel tubing. Not imported.
Protects your engine and radiator, will not interfere with your legs.
Includes high quality electrostatic Powder-Coating, a durable and chip resistant finish!
Easy bolt on installation.
Includes hardware kit.
This product includes a LIFETIME WARRANTY.
Remove the right hand side lower subframe bolt
Remove the 2 long bolts that hold the engine to the frame
Hold the right hand side crash bar in position and install the new 35 mm subframe bolt
Install the 2 long bolts up front
Remove the left hand side lower subframe bolt
Install the left side crash bar
Install the nuts on the front 2 bolts
Tighten all bolts
