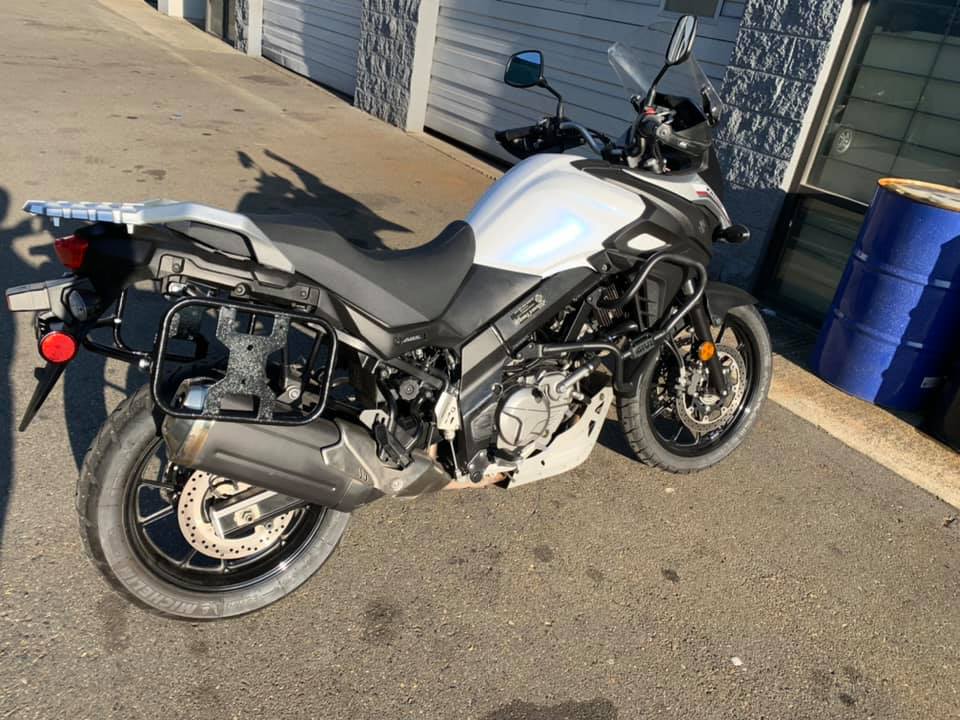

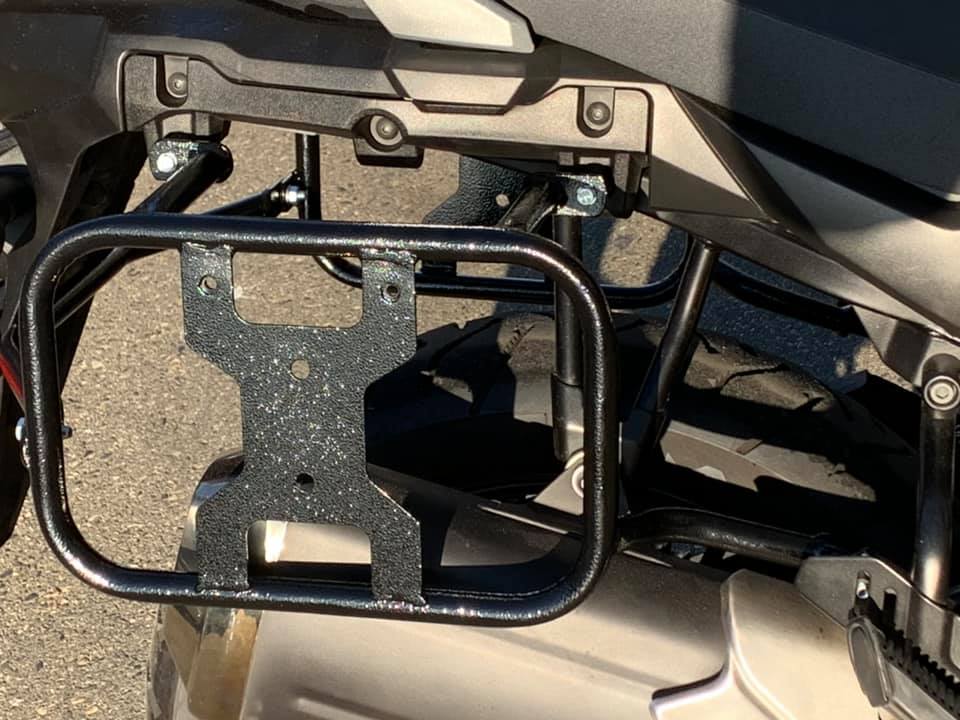

Pannier rack for Suzuki DL650 2017 model and up. Mount any hard cases with this rack, aluminum cases, ammo cans, pelican type cases.
Made from 3/4 inch steel tubing.
Powder-coated black hammertone.
Comes with bolts.
Easy bolt-on installation.
It comes with the hardware to install any hard case.

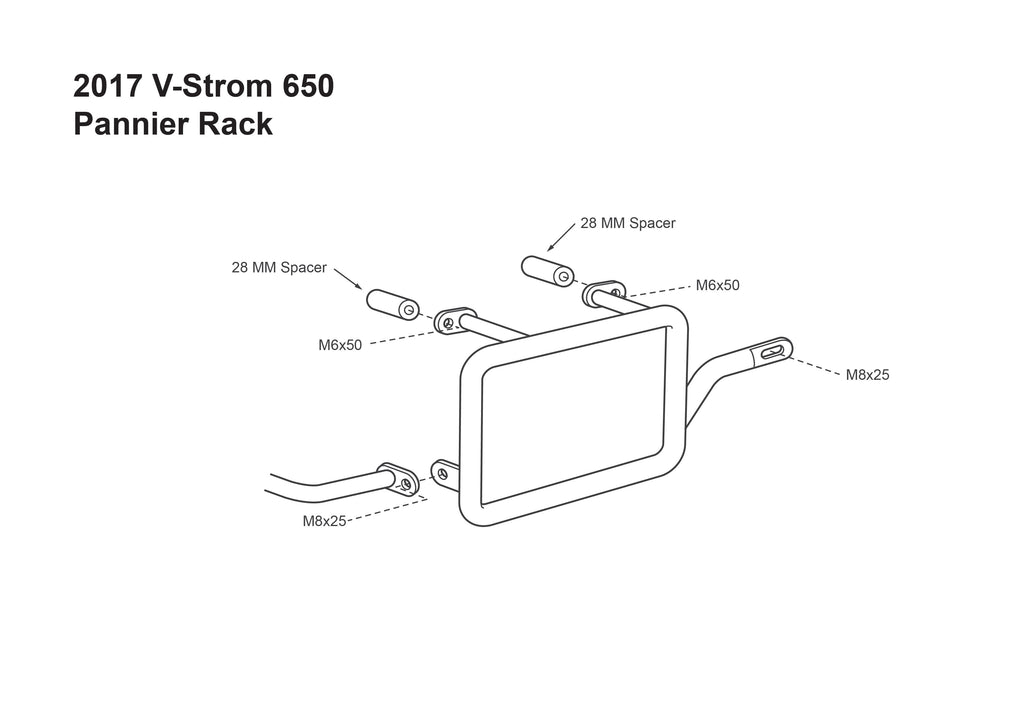

Installation please see pictures
Remove the 2 lower bolts on the subframe
Hold up the rack and use the 28 mm spacers with 50 mm m6 bolts on both holes
Use the m8 x 25 mm bolt at the back of the footpeg bracket
Install the other side the same way

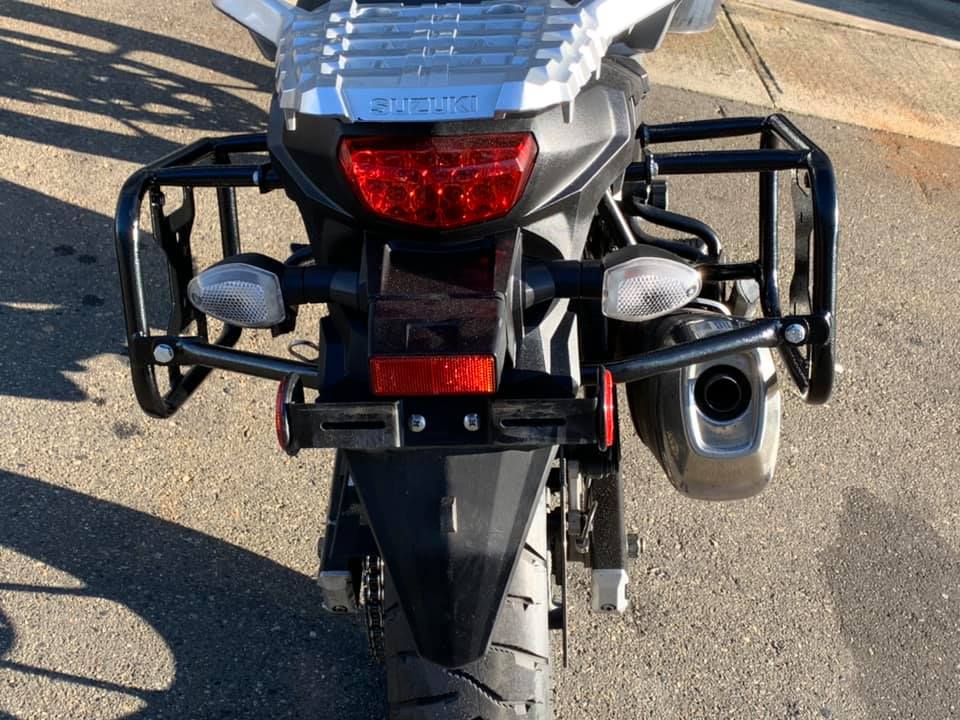

Connect the 2 sides with the connecting bar and use the 2 m8x25 mm bolts with nuts
Tighten all bolts
