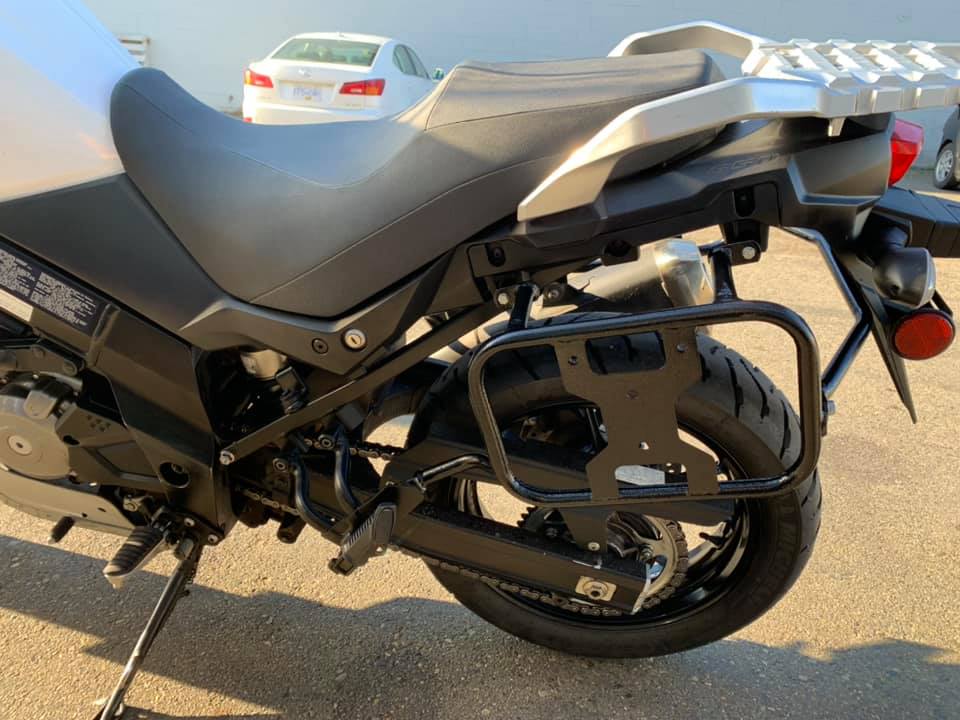

Pannier rack for Suzuki DL650 2017 model and up. Mount any hard cases with this rack, aluminum cases, ammo cans, pelican type cases.

Made from 3/4 inch steel tubing.

Powder-coated black hammertone.

Comes with bolts.

Easy bolt-on installation.

It comes with the hardware to install any hard case.

 Installation please see pictures

Remove the 2 lower bolts on the subframe

Hold up the rack and use the 28 mm spacers with 50 mm m6 bolts on both holes

Use the m8 x 25 mm bolt at the back of the footpeg bracket

Install the other side the same way

Connect the 2 sides with the connecting bar and use the 2 m8x25 mm bolts with nuts

Tighten all bolts
